DGT1SP

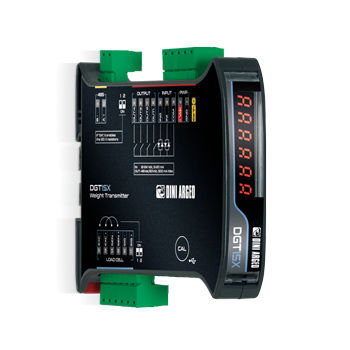

Compact multifunction weight transmitter, for DIN rail mounting. It allows the direct reading and diagnostics of the connected weighing system. The wide range of available interfaces makes the integration of the weighing in any automation system easier and safer.

Available in the following versions:

ETHERNET/IP / RS485 (DGT1SP)

Available versions via special order (please contact us for more information)

PROFINET/ MODBUS/TCP/ ETHERCAT/ PROFIBUS / DEVICENET / CANOPEN / ANALOG OUTPUT

• Main Features

  • Number of scales/channels: 1
  • Calibration:
    - Theoretical (mVV)
    - With sample weights
    - Via Web server
  • Conversion rate:
    - Up to 400 Hz
  • Maximum number of load cells: Up to 16x350Ω
  • Minimum sensitivity:
    - High resolution 0,01 µV/d
    - Legal for trade 0,3 µV/e
  • Number of legal-for-trade divisions:
    Up to 10,000e or multi-field 2x3,000e
  • Load cell excitation voltage: 5 V
  • Communication ports:
    - 1 micro-USB port (device) (Mod. with fieldbus)
    - 1 RS485 port (Mod. DGT1SP / DGT1SP-AN)
  • Communication protocols: Modbus RTU, ASCII or fieldbus
  • Communication rate:
    - On serial port up to 325 Hz
    - On Fieldbus up to 16 Hz
  • PC programs for configuration: DiniTools
  • Display: Red LED 8 mm, 6 characters
  • Keyboard: 5-key mechanical
  • Housing: ABS
  • Power supply: 12÷24 Vdc, 5 W
  • Operating temperature range:
    - For internal use -20°C ÷ +60°C
    - Approved -10°C ÷ +40°C
  • Max. humidity: 85%.

• Certifications

  • 2014/30/EU EMC
  • 2014/35/EU LVD
  • 2011/65/EU RoHS
  • OIML R61 - MID
  • OIML R51 - MID
  • OIML R76
  • EU Type Examination Certificate (2014/31/EU)

• Inputs/Outputs

  Analogue output:
  16 bit (Model DGT1SP-AN)
  - 4÷20mA
  - 0÷10Vdc
  Digital outputs:
   n. 4 OUT, configurable
  Digital inputs:
  n. 2 IN, configurable

• Available Models

  Part Number	Description
  DGT1SP	Weight transmitter on DIN rail, with 2 INPUTS and 4 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program
  DGT1SP-ETHIP	Weight transmitter on DIN rail, with 2 IN, 4 OUT and EtherNet/IP port. EtherNet/IP. Fitted with 5-key keypad and LED display. Multifunction weighing program.
