1280 Series

The 1280 Enterprise Series programmable indicator offers Unlimited Control and Infinite Possibilities.

The 1280 Enterprise is an innovative powerhouse, delivering uncompromising speed for today’s operations and expansive option for tomorrow’s requirements.

 The 1280 Enterprise is designed to withstand even the harshest environments, built with industrial-grade components and stainless steel NEMA Type 4X enclosures.

With a built-in web server, Ethernet TCP/IP, Wi-Fi, USB, Bluetooth and RS-232/485, you may never need to add an option card; however the 1280 is easily expandable with up to six smart option cards.

Use Wi-Fi Direct to connect wireless devices without accessing a customer’s network infastructure-enabling a fast and secure connection.

A highly customisable graphical user interface, the ability to power up to eight scales, and a lightning-fast processor takes multitasking to the next level.

  • Main Features

    • Customizable color touchscreen with graphical user interface
    • User-defined softkeys, icons and graphics
    • Tactile keypad for scale operations, numeric entry and navigation
    • On-screen keyboard available during entry mode (or external keyboard)
    • Built-in web server for remote access, systems integration and data monitoring
    • Multi-language operation and text entry
    • Supports eight scales within five different kinds:
      • Analog load cell, multi-range/interval weighing
      • Total scale summing
      • Serial input scales
      • iQUBE² scales
      • Program scales

    • Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
    • iRite™ Programming Software
      • Five built-in applications: Truck in/out, recipe storage, filling/dosing, counting, checkweighing
      • Customizable user programs with event-based functions
      • 150 built-in functions for common processes & data tables
      • Customize and transfer data via email, FTP server and networked printers
      • Display data with line charts or bar graphs

    • Dual-port assignments for weight tickets, credit cards, smart pass, HID readers, etc.
    • iRite reporting or iQUBE2 alerts
    • Email, USB, Ethernet TCP/IP, Wi-Fi Direct®, two serial ports RS-232 or RS-485
    • Alibi memory captures serial port transmissions
    • Four configurable data-stream formats for PC, printers and remote displays
    • 100 setpoints, 18 configurable setpoint types
    • Eight digital I/O for control and pulse count

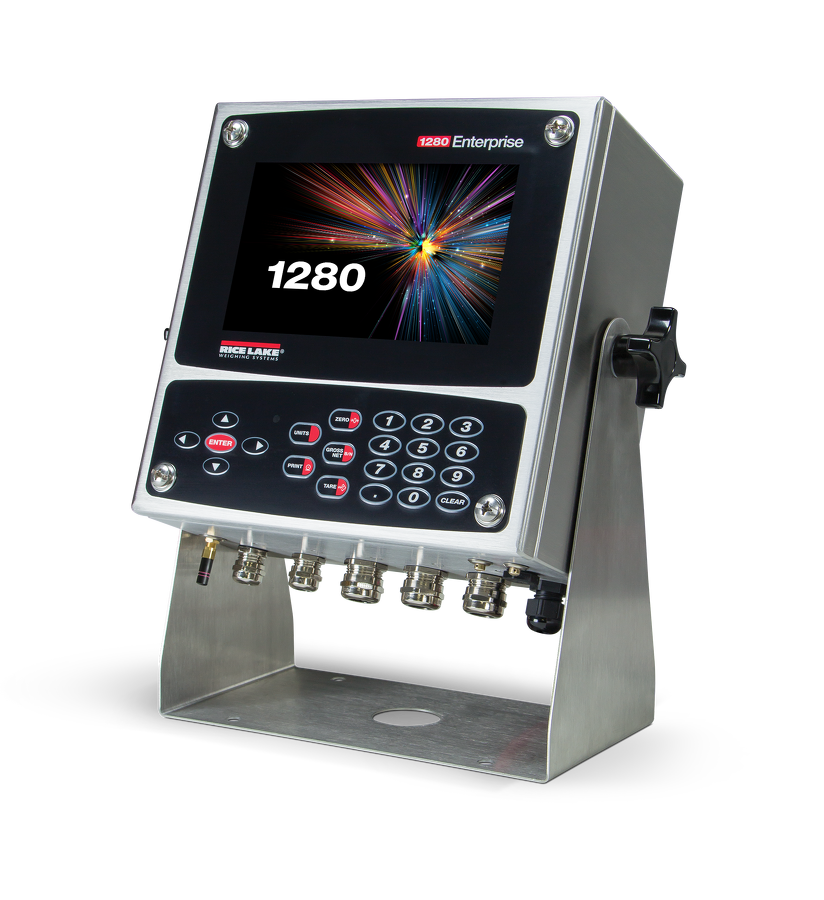

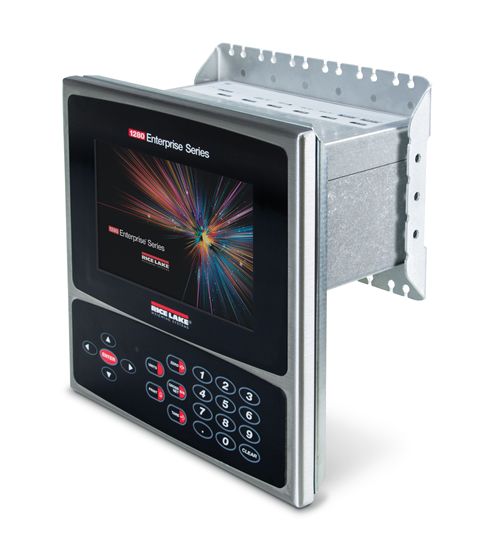

    • Three different enclosure types: universal with tilt stand, panel mount and wall mount

  • Specifications

    AC voltages: 100 to 240 VAC; 50/60 Hz
    DC voltages: 11 to 30 VDC
    Power Consumption:
    Excitation Voltage:
    10 VDC (+/- 5 VDC)
    16 × 350 ohm or 32 × 700 ohm load cells per A/D card
    Analog Signal Input Range:
    -60 mV to 60 mV
    Analog Signal Sensitivity:
    0.3 μV/graduation minimum at 7.5 Hz to 120 Hz
    1.0 μV/graduation recommended
    A/D Sample Rate:
    7.5 to 960 Hz, software selectable
    Internal: 8,000,000 counts
    Display: 1,000,000
    System Linearity:
    ± 0.01% full scale
    Digital I/O:
    Eight I/O channels on CPU board
    Optional 24-channel I/O expansion boards
    Communication Ports:
    Port 1 & 2: Full duplex RS-232 with CTS/RTS, RS-422/485
    Baud rate: 1200 to 115200
    Port 3: USB 2.0 Device (Micro)
    USB host: (2) Type A connectors max 500 mA
    Ethernet: Wired 10/100 Auto-MDX
    Ethernet: Wireless 802.11 b/g/n 2.4GHz
    Selectable filters: Three stage, Adaptive or Damping
    Embedded Linux® OS
    8 GB eMMC (system use)
    1 GB DDR3 RAM
    460 MB onboard database (SQLite) storage
    Up to 32 GB micro SD card (sold separately)
    Seven-inch, 800 × 480 pixel, 500 or 1,000 NIT
    Twelve-inch, 1280 × 800 pixel, 1,500 NIT
    22-key membrane panel, tactile buttons, on-screen keyboard for text and numeric entry, USB port for flash drive, keyboard and printer
    Temperature Range:
    Certified: 14 °F to 104 °F (-10 °C to 40 °C)
    Operating: -4 °F to 131 °F (-20 °C to 55 °C)
    Universal: IP69K
    Wall Mount: IP66
    Panel Mount: IP69K, NEMA Type 4X and 12
    Stainless steel 304 enclosure
    Universal enclosure: 11 lb (4.9 kg)
    Panel mount enclosure: 8 lb (3.6 kg)
    Wall mount enclosure: 23 lb (10.4 kg)
    Panel mount 7 in touch-only: 7 lb (3.1 kg)
    Panel mount 12 in touch-only: 10 lb (4.5 kg)
    EMC Immunity:
    10 V/m

  • Approvals

    • NTEP CC 15-001/Class III/IIIL 10,000d
    • Measurement Canada AM-5980C,
    • Class III/III HD 10,000d
    • OIML R76/2006-A-NL1-19.23
    • Class III/IIII 10,000d
    • EU Test Certificate TC8596
    • UL/cUL Listed (Universal, Wall Mount)
    • UL/cUL Recognized (Panel Mount)
    • CE Marked
