GAI Series

Multifunctional high precision scales, suitable for laboratory, industrial use, jewelry and pawn shops and cash for gold shops.

Available Capacity(g): 420, 620, 2200, 4200, 6200.

Available on Indent Order.

  • Main Features

    • Backlit LCD display with 7 digits 16.5mm high.
    • Waterproof membrane keypad, with 5 keys.
    • Construction: bearing structure in die cast aluminium, ABS case.
    • Weight detection through tuning fork system.
    • Stainless steel plate, size:
    • - GAI420N and GAI620N models Ø 118mm

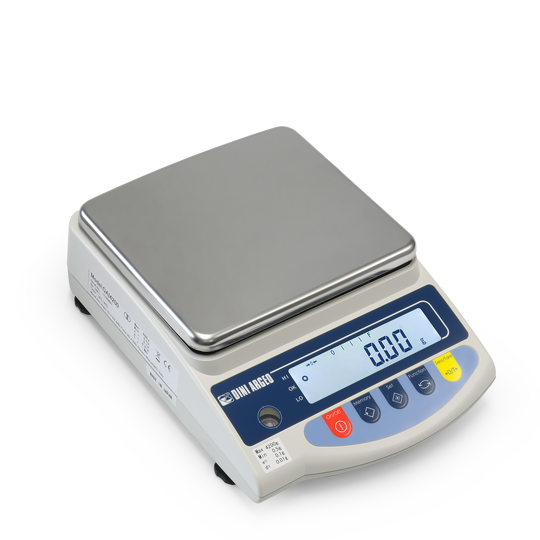

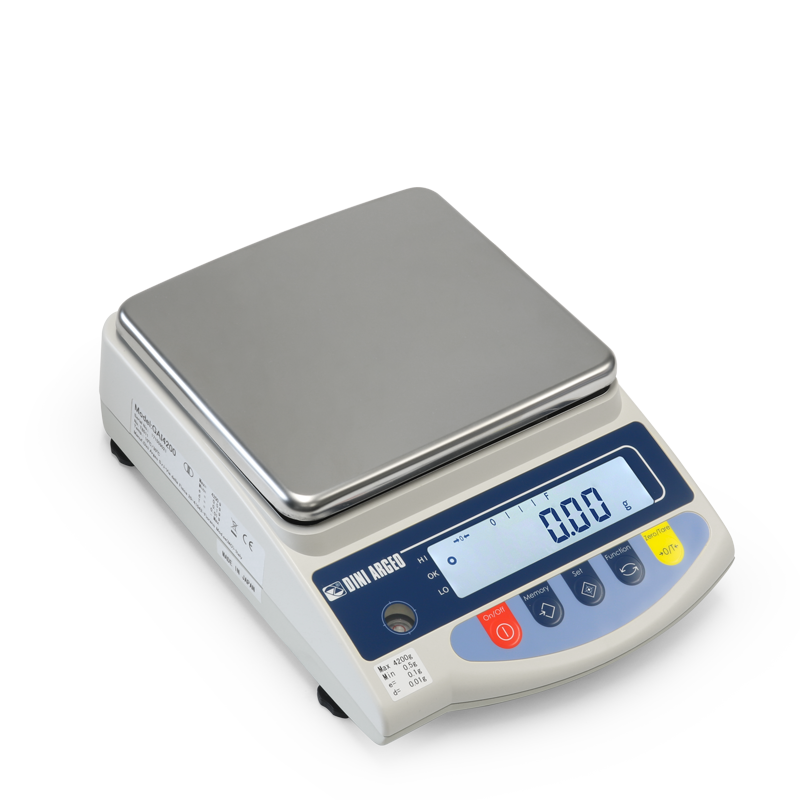

    • - GAI2200N, GAI4200N, GAI6200N models 180x160mm.

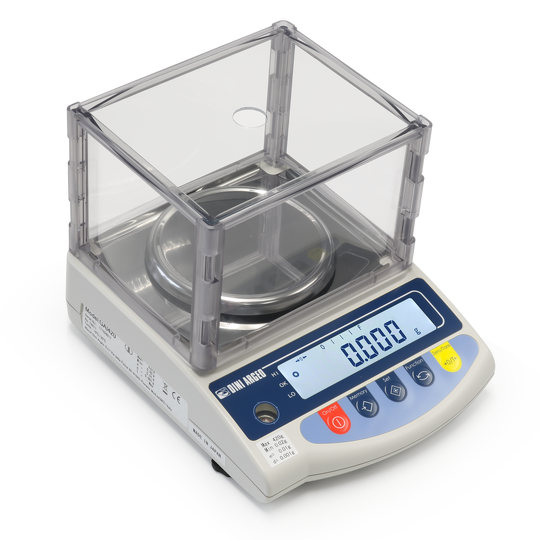

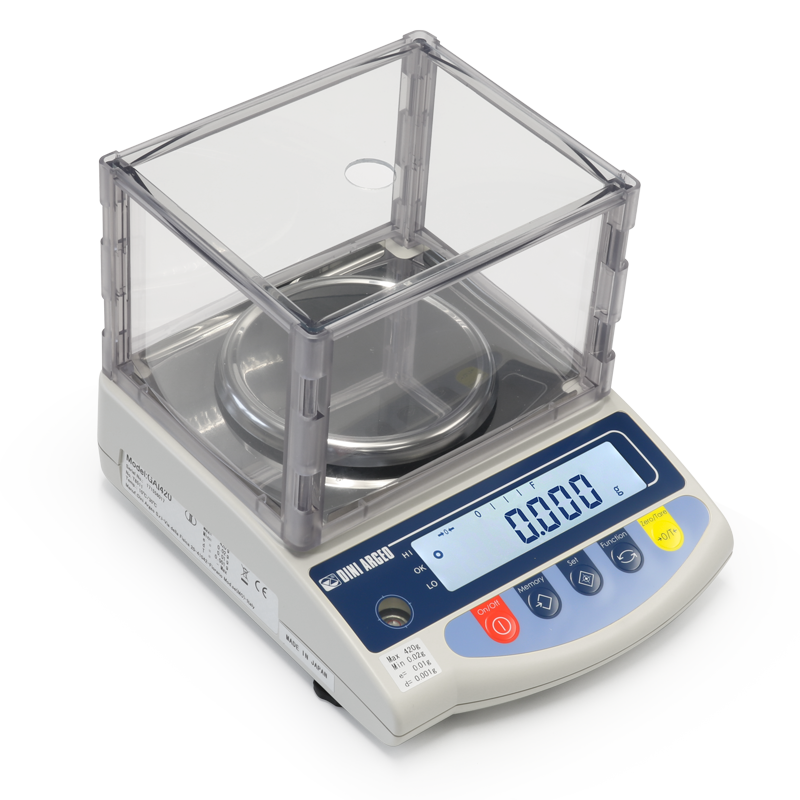

    • Winscreen (on GAI420N and GAI620N models), level, adjustable feet.
    • Power supply: standard fitte with 230 Vac power adapter.
    • Operating temperature +5°C...+35°C, non-condensing relative humidity 80%.

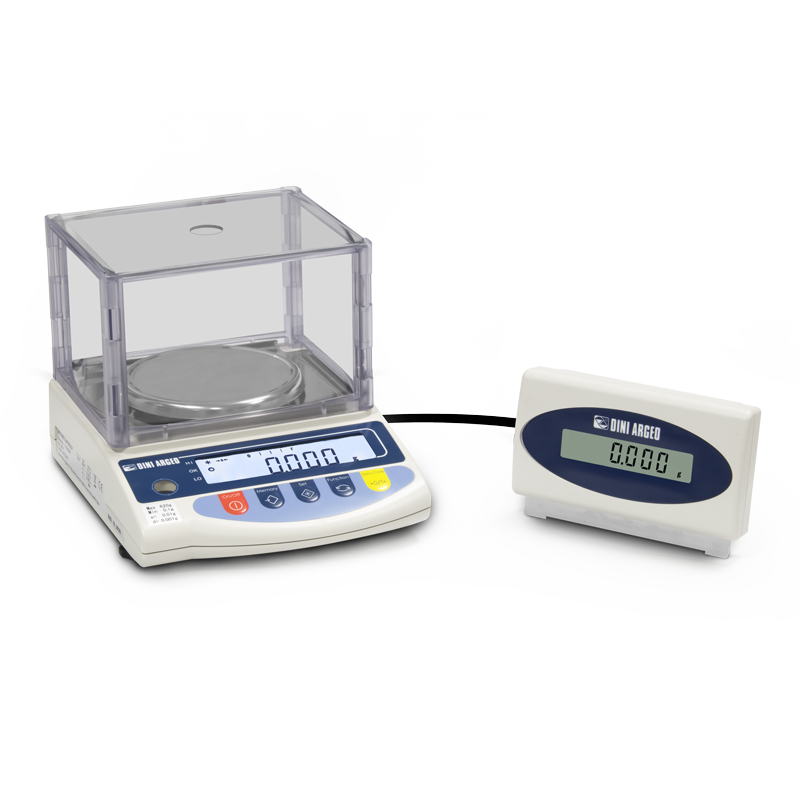

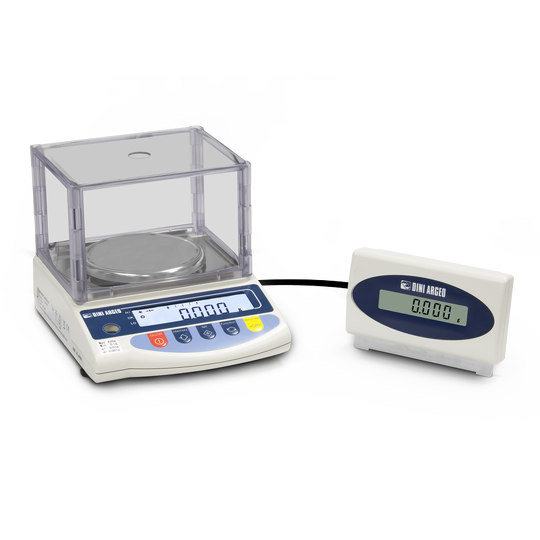

    • RS232/c port for connection to PC, 3590EGT series indicator or printer.
    • Internal calibration (except GAI6200N)
  • Functions

    • counting
    • % weight
    • conversion units of measure
    • Standard versions, not approved: g, kg, ct, oz, lb, ozt, dwt
    • zeroing
    • zero tracking
    • semi-automatic tare
    • digital calibration
  • Available Models

    Part NumberClassPan Size (mm)Capacities
    GAI420NIIØ 118 mm420g x 0.001g
    GAI620NIØ 118 mm620g x 0.001g
    GAI2200NII180 x 160 mm2200g x 0.01g
    GAI4200NII180 x 160 mm4200g x 0.01g
    GAI6200NI180 x 160 mm6200g x 0.01g
  • Documents

  • GAI Series
  • GAI Series
  • GAI Series


Fill in the form below to enquire about this product. Please make sure you fill in all required (*) fields.
