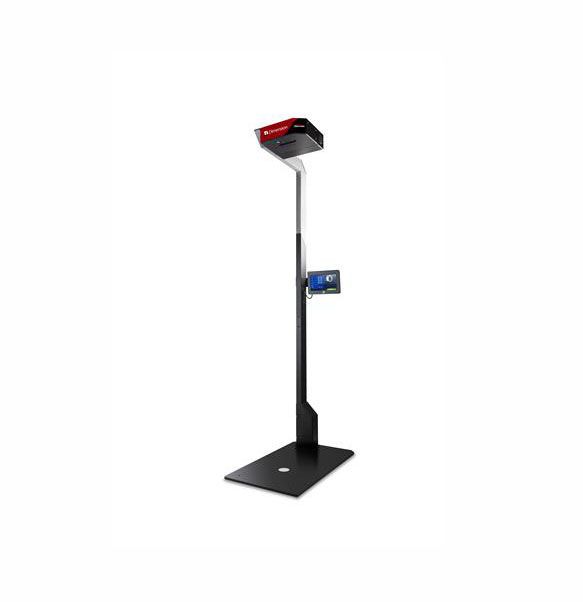

iDimension Plus

When it comes to calculating dimensions of boxes, flats, polybags and more, Rice Lake’s iDimension Plus is the fastest static tabletop solution on the market. The iDimension Plus helps prevent revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Put the iDimension Plus to use right away—simply open and assemble to instantly display dimensions.

Available on Indent Order

  • Main Features

    • Easy to assemble in 30 minutes or less
    • Displays dimensions in less than 2 seconds
    • Automatic scan and dimension, no special package placement required
    • Includes 7 in (178 mm) touchscreen monitor

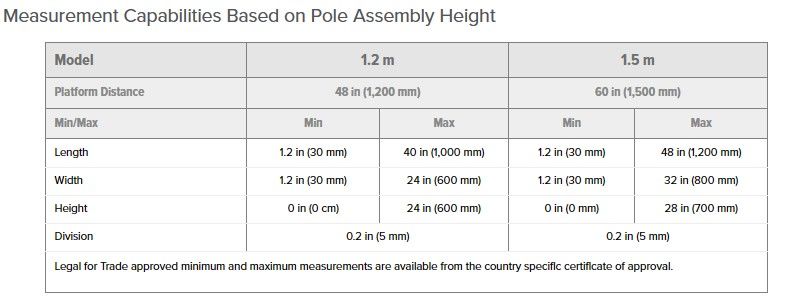

    • Dimensions parcels at 0.2 in (5 mm) NTEP Legal for Trade accuracy
    • Dimensions irregular shapes and polybags at 0.5 in NTEP Legal for Trade accuracy
    • Capable to dimension opaque packaging
    • Measurement capabilities beyond Legal for Trade limits
    • Standard resolution color camera included
    • High resolution color image, 2880 x 2160 pixels, available from iDimension Plus 4K
  • Specifications

    System Requirements:
    Windows® 10
    Power Requirements:
    Single power source 110 to 240 V external power supply, US power cord
    Communication Ports:
    (1) USB A/(1) 10/100/100 Base-T Ethernet
    Software Integration:

    API and SDK files available for network device integration/iDimension Desktop Wedge
    Package Contents:
    iDimension Plus, calibration object, USB display, US power cord and assembly tool kit
    Operating Temperature:
    32 °F to 104 °F (0 °C to 40 °C)
    Two-year limited
    NTEP 19-040A2/OIML R129/2000-A-NL1-20.05/CE Marked/MID Certified/NMI

  • Peripherals

    • Optional powered USB hub for use of more than one peripheral
    • Optional wired or wireless USB bar code scanner
    • Dimensions and bar code text data added to web service API
    • Rice Lake BenchPro shipping/postal scales
    • Rice Lake 680, 880, 1280 indicators available for automation applications
  • Video

  • Available Models

    Part NumberDescription
    204599iDimension Plus w/US pwr cord,1.2M Pole Mount System, OIML/MID/EU/NMI/NTEP Approved
    204600iDimension Plus 4K with US pwr cord,1.2m Pole Mount System, OIML/EU/MID/NMI/NTEP
    204596iDimension Plus w/US pwr cord,1.5M Pole Mount System, OIML/MID/EU/NMI/NTEP approved
    204598iDimension Plus 4K with US pwr cord,1.5M Pole Mount System, OIML/MID/EU/NMI/NTEP
  • Documents

  • iDimension Plus
  • iDimension Plus
  • iDimension Plus
